LWS080-RT

Laser Workstation with rotary indexing table

The LWS080-RT robot cell is an ideal basis for your
" Low Cost Intelligent Automation " project

  • Robust technology
  • Small footprint
  • Manual parts feed via two segmented rotary indexing table, optionally with auxiliary axis
  • Cycle times 5-15 seconds
  • Process control and monitoring
  • Automatic storage of process data
  • Tracability
  • LWS-080-RT
  • LWS-080-RT

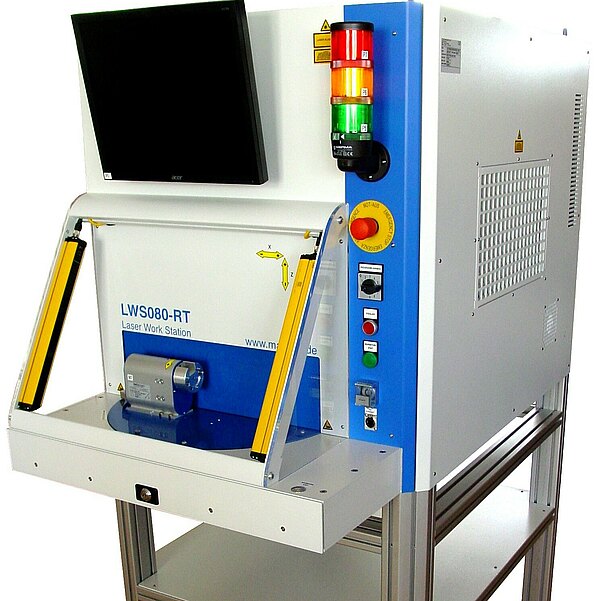

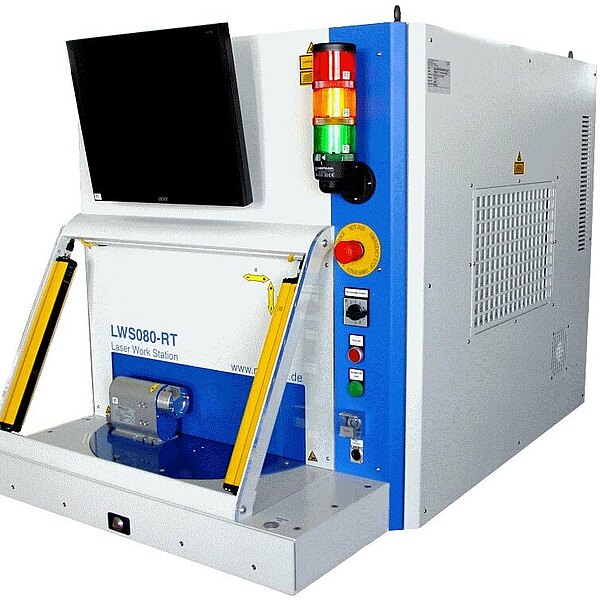

The LWS080-RT laser cell with rotary indexing table is an ideal solution to start laser-supported production such as laser plastic welding or laser soldering on a small footprint. The 2-segment rotary indexing table allows the workpieces to be inserted while a second workpiece is being processed in the process room.

A safety PLC coordinates the switching off of the laser when the turntable rotates and the reading of the safety light barrier.

We offer a choice of 3 or 4 (3 linear, 1 rotation) linear robot as travel systems.

Typical laser powers are up to 250W light power, but light power up to 60W (LCL) or air-cooled 100W or 140W systems are sufficient for most applications.

  • Stable profile construction made of aluminum
  • Free-standing structure with a base area of ​​approx. 1.4 mx 0.9 m
  • Turntable combined with lifting door
  • Forced shutdown of the laser system when the lifting door is open via a safety switch with blade contact
  • Overall construction is light-tight and resistant to laser scattered light
  • Optional stable base frame
  • Illuminated interior
  • Working height of mounting plate approx. 76cm (table height)
  • ESD sensitive parts with equipotential grounding
  • Integrated safety PLC for safe process control
  • The process room is equipped with customer-specific mechanical components
  • Weight about 250kg
  • Laser Plastic Welding
  • Laser Soldering
